MITSUI & CO., INC. (USA)

    Project: Refurbishing Tank Facility
    Service: Consulting Services
    Location: Prince Rupert, Canada

    The project consisted on refurbishing an existing 80,000 bbls API 650 tank, install 12” SS and 6” SS pipeline from tank to ship dock and rail infrastructure; tanks and pipelines to be insulated and heat traced. E&TS prepared a cost estimate and Preliminary Construction Chronogram. Submitted to Mitsui a proposal to execute the project in an EPC contract. Contracted under R&R Drafting, Inc.

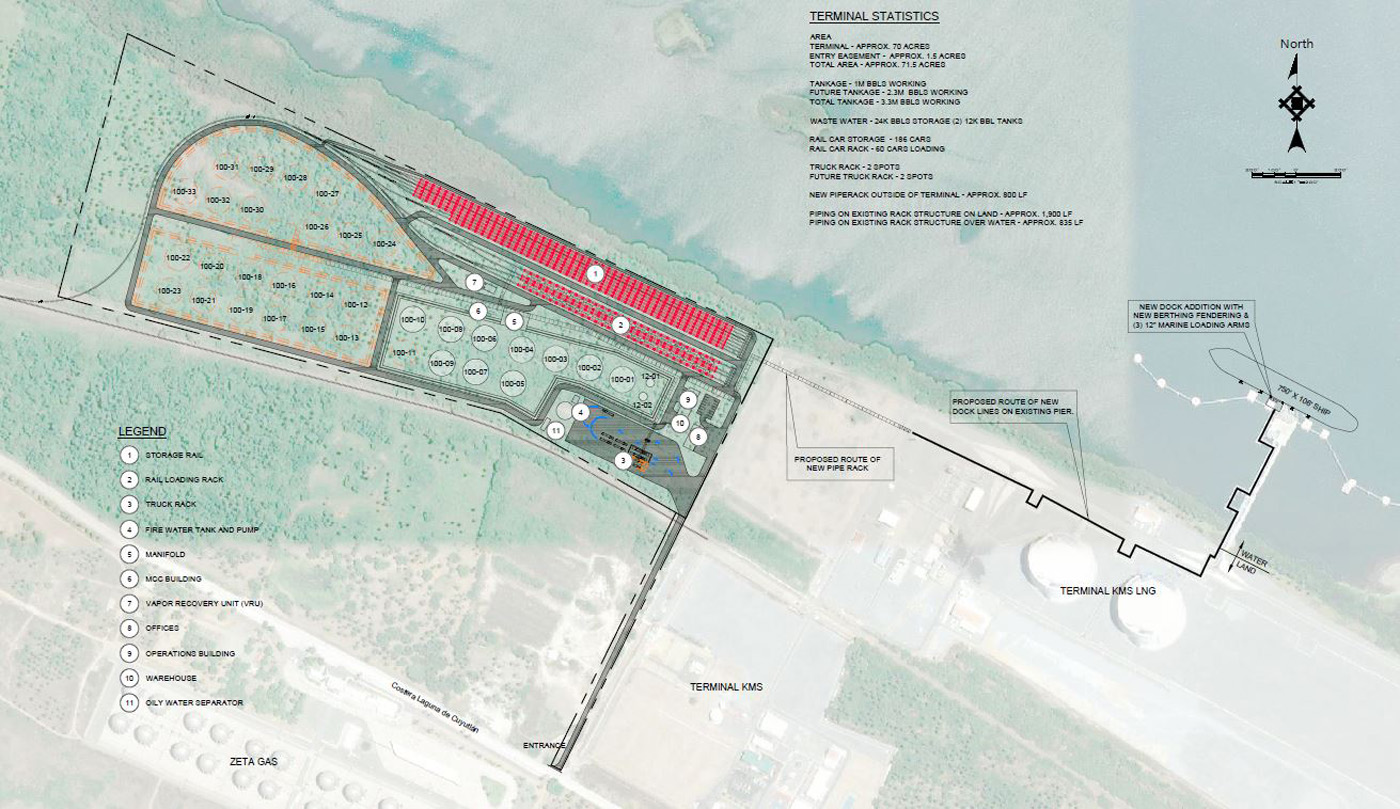

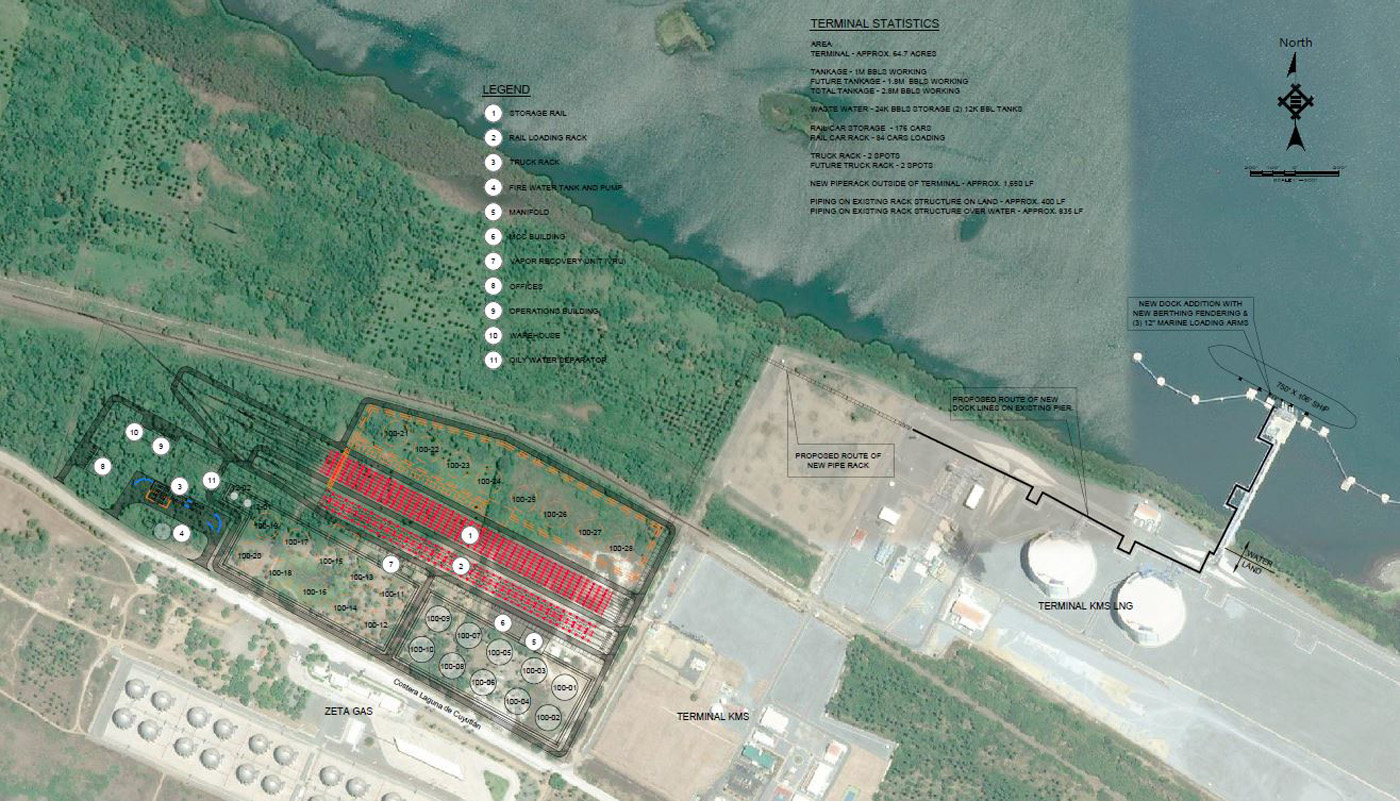

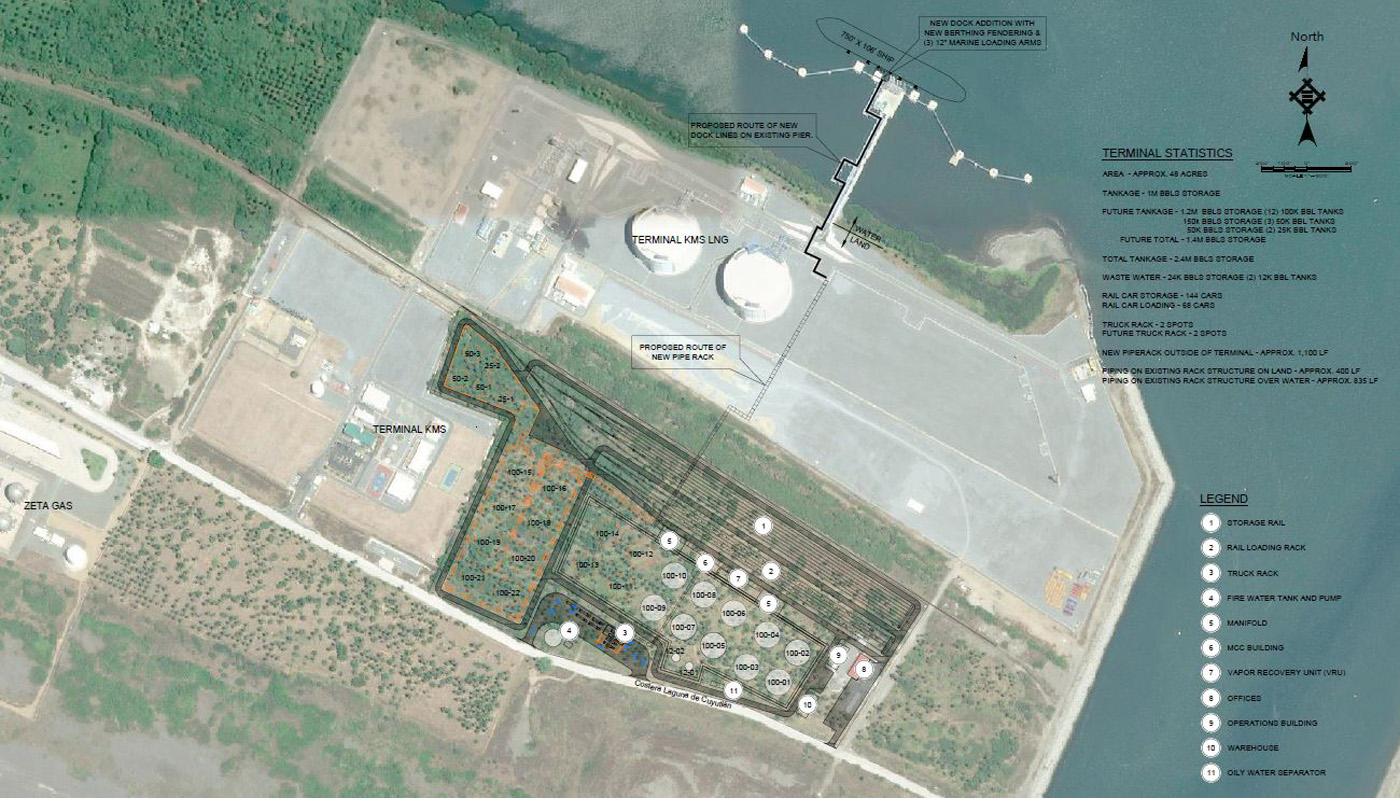

  • Manzanillo Terminal Project
  • Project: LPG Rail Expansion Project
    Service: Complete Terminal and Tank Services
    Location:Mont Belvieu, Texas

    The project consisted on increasing the amount of LPG railcars unloaded per day from 30 to 60. Installed over 5400 feet of new rail, 20 new rail loading positions, 10 compressors, 2 fin fans, 1 chiller, four (4) 30,000-gallon ASME pressurized vessel, 3 charge pumps, and 3 pipeline pumps. Also, installed 4.60 miles of pipeline infrastructure to Enterprise facility. This project was contracted under R&R Drafting, Inc. Develop control logic for required permissive, shutdowns, and safeties from overpressure, no flow, vibration, etc. for the LPG Expansion project.

    Project: Cleaning Procedures and Piping Modifications
    Service: Consulting Services
    Location: Panama

    E&TS was tasked with the evaluation of necessary cleaning procedures, piping modifications, pigging and filling procedures to change pipeline service from Fuel Oil to Diesel.
